Test & Measurement Equipment
Elevate your possibilities.
Our products include advanced test stands for motor, battery and controller testing. We have an inhouse design team to cater to every need in the electric vehicle and fuel cell testing solutions. Our expert solutions team will assist you at all times during project development right from design, development, planning, to manufacturing and deployment, ensuring you experience seamless productivity and zero down time.
Cogging & Friction Torque
Test Bench
-
Fully inhouse design.
-
Successfully commissioned at German tier 1 customer specializing in motors and drives.
-
The test system can test motor, motor software and controller features.
-
Precession equipment to measure the Cogging & Friction Torque of EV Motors.
-
Test bench capable of reaching maximum 120 RPM and maximum of 1 Nm Torque.
-
Fully automated test software.
-
The test bench confirms to CE Specifications.
-
All safety features implemented
Motor Test Bench
(Motor Dyno)
-
Fully in-house design.
-
The test system can test motor, motor software and controller features.
-
Able to simulate/test different Electric Vehicle maneuvers, at various torque/speed points, at various temperatures.
-
Test bench capable of reaching maximum 15000 RPM and maximum of 50 Nm Torque.
-
Fully automated test software.
-
The test bench confirms to CE Specifications.
-
All safety features implemented.
-
CAE analysis (modal analysis) done to identify resonance points and eliminate in design stage.

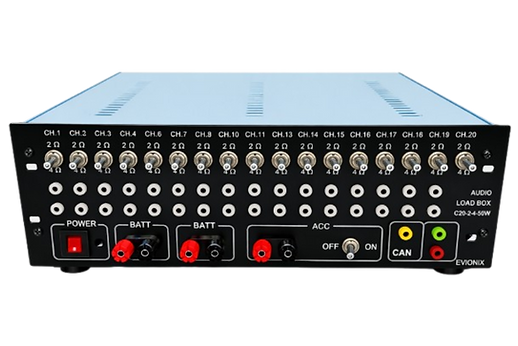

Audio Load Box
-
Fully inhouse design.
-
20 channel Audio load.
-
Each channel individually configurable to 2/4 ohms impedance.
-
Interface for CAN lines.
Static Simulator &
Load Box
-
Fully inhouse design.
-
Supplied to US Fuel cell OEM and Automotive Tier1 in India.
-
Able to Simulate Analog inputs, Digital inputs, PWM inputs, 4-20mA inputs, High Side Load and Low Side Load.
-
Easy interface to connect various kinds of ECUs.
-
Internal +24, +12V and +5V power supply.
-
Interface for CAN lines with configurable termination.
-
Operation with 110V/230V, 50/60 Hz
